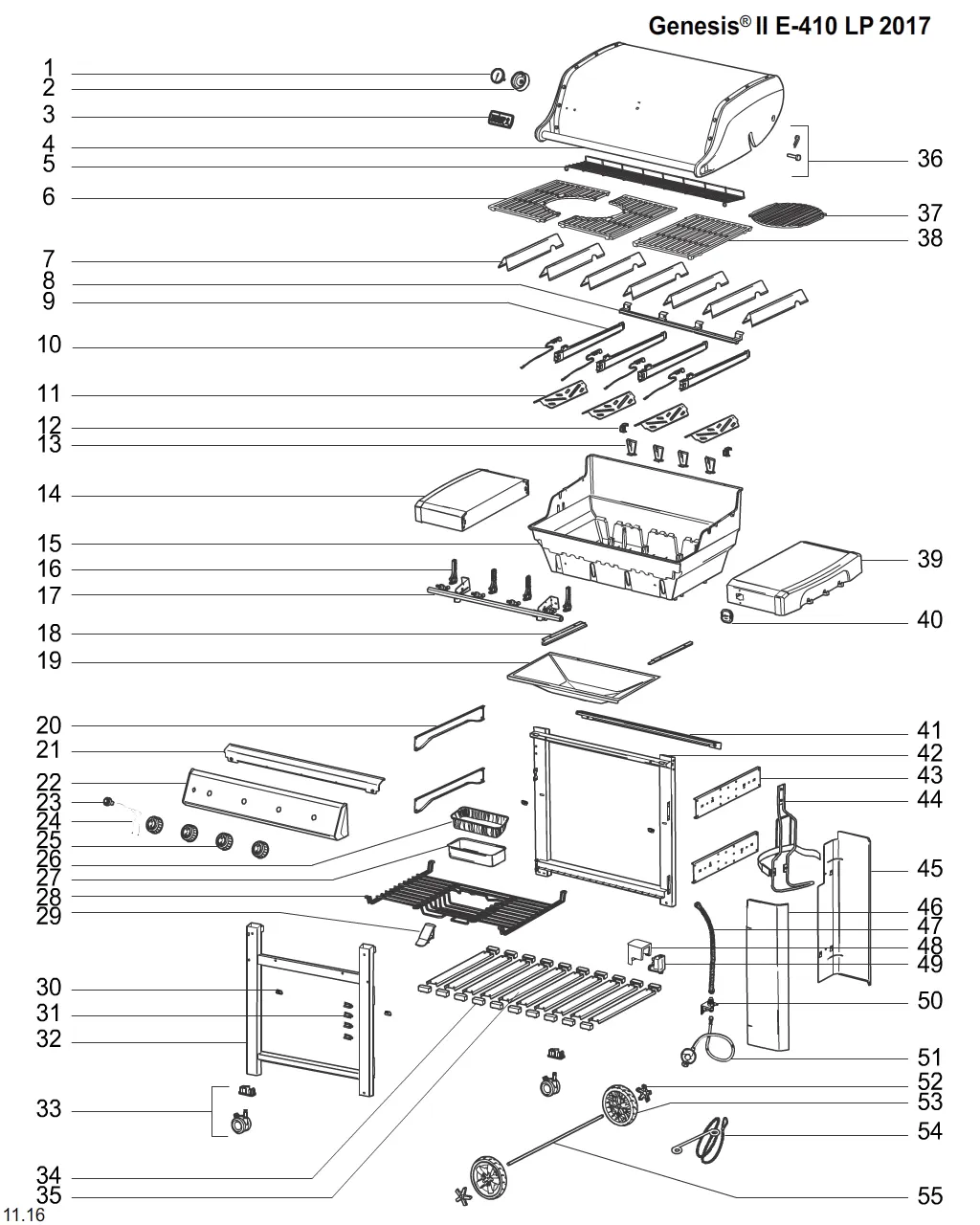

1             67089    Thermometer, C/F, Genesis II, export

2             66049    Lid Thermometer Bezel

3             66282    Weber logo

4             66055    Lid assembly, Genesis II E/SE-410, black

4             66061    Lid Bumpers

5             66045    Warming Rack

6             66093    Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export

7             66033    PE flavorizer bars, Genesis II E-410 (qty 7)

8             66168    Crossover tube, Genesis II 400 series, export ’17

9             66775     Burner tube kit, 29 mb, Genesis II 400 series (qty 2)

10           66362    Igniter electrode w/wire, 36″, black

10           66363    Igniter electrode w/wire, 46″, green

10           66364    Igniter electrode w/wire, 51″, blue

10           66833    Igniter electrode w/wire, 27″, yellow

11            66686    Heat Deflectors

12           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

12           69284    Warming Rack Bracket

13           66514    Burner Tube Clamp (qty 2), Genesis II

13           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

14           66369    LHS fixed table, export

14           72969    Hardware bag E, Genesis II LHS fixed table

14           72974     Crescent wrench

15           66678    Hardware, manifold

15           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

15           66824    Hardware for cookbox, Genesis II/II LX

15           67412     Cookbox, Genesis II 410/415, ’19

16           66357    Clip for ignition wire routing, round set (qty 2)

16           66360    Clip for ignition wire routing, square set (qty 2)

17            66299    Manifold assembly, LP, 29 mb, Genesis II 400 series, export

17            66678    Hardware, manifold

18           66028    Bottom tray rails, Genesis II E/SE series

18           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

19           66037    Grease Tray

20           66219    LHS frame connector, Genesis II E/SE series

20           66680    Hardware, frame/tank hanger, Genesis II/LX

21           66230    Top trim for control panel, SS, Genesis II/LX 400 series

21           66680    Hardware, frame/tank hanger, Genesis II/LX

22           66255    Control panel assembly, Genesis II E/SE-410

22           66680    Hardware, frame/tank hanger, Genesis II/LX

23           69283    Ignition Button

24           66377     Igniter button wire assembly, Genesis II E/SE-410

25           66048    Knobs

26           6498      Drip Pan

27           70379     Catch Pan Kit

28           66172     Wire rack, Genesis II E/SE-410

29           66174     Catch pan retainer/lock, Genesis II E/SE series

30           66175     Wire rack bushing set, Genesis II E/SE series (qty 4)

31           66368    Igniter wire clip set

32           66235    Front frame, Genesis II 400 series, export

32           66680    Hardware, frame/tank hanger, Genesis II/LX

33           67066    Caster insert kit

33           67067     Locking Casters

34           66066    Bottom slat mounting bracket set, Genesis II E/SE series (qty 2)

35           66067    Bottom slat, single w/label, Genesis II LP, export

35           66068    Bottom slat set, Genesis II E/SE series (qty 2)

36           66060    Lid hardware, Genesis II E/SE series

37           64830    GBS Insert

38           66093    Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export

39           66343    RHS fixed table, Genesis II E/SE series

39           66347    iGrill Plugs, Genesis II E/SE series (qty 2)

39           72968    Hardware bag D, Genesis II RHS fixed table

39           72974     Crescent wrench

40           66344    iGrill cover

41           66223    Rear frame top trim, Genesis II E/SE-410

41           66680    Hardware, frame/tank hanger, Genesis II/LX

42           66243    Rear frame, Genesis II 400 series, export

42           66680    Hardware, frame/tank hanger, Genesis II/LX

43           66218    RHS frame connector, Genesis II E/SE series

43           66680    Hardware, frame/tank hanger, Genesis II/LX

44           66257    Tank hanger w/strap, Genesis II LX series, export

44           66258    Tank hanger strap w/clasp, export

44           66680    Hardware, frame/tank hanger, Genesis II/LX

45           66217     Rear tank enclosure panel, Genesis II, export

45           66679    Hardware, tank panel buttons

46           66225    Front tank panel, Genesis II E/SE series

46           66679    Hardware, tank panel buttons

47           66165    Corrugated gas line, Genesis II E/SE-410/610

48           66358    Igniter module cover, Genesis II 210/310/410

49           66260    Igniter module, Genesis II 310/410/340/440

49           66355    Igniter Kit

49           67161     Conduit tube for igniter wires, black

49           67693    Igniter wire conduit clamp, 3 pack

50           66208    Bulkhead assembly, Genesis II 400/600 series, export

50           66680    Hardware, frame/tank hanger, Genesis II/LX

51           91478     LP hose and regulator 30MB, 90CM, NL

52           67654    Wheel insert kit, Genesis II, ’19

53           67445    Wheel

54           66346    Match stick holder, Genesis II E/SE-410/610

55           66251    Axle w/hardware, Genesis II E/SE series

55           66682    Hardware for wheels

1             67089    Thermometer, C/F, Genesis II, export

2             66049    Lid Thermometer Bezel

3             66282    Weber logo

4             66061    Lid Bumpers

4             66434    Lid assembly, Genesis II LX E-440, black

4             67203    Lid assembly, Genesis II LX, black ’18

5             66831    Handle bezel, Genesis II LX, ’17

6             66418    Lid handle, Genesis II LX 440

6             66820    Hardware, handle, Genesis II LX

7             69274    Handle light (no batteries), Genesis/Summit

8             66800    Warming rack, SS, Genesis II LX 440

9             66093    Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export

10           66797     Flavorizer Bars

11            66168    Crossover tube, Genesis II 400 series, export ’17

12           66666    Burner tubes, 29 mb, Genesis II LX, E/S-440/640 (qty 2)

13           66362    Igniter electrode w/wire, 36″, black

13           66363    Igniter electrode w/wire, 46″, green

13           66364    Igniter electrode w/wire, 51″, blue

13           66833    Igniter electrode w/wire, 27″, yellow

14           66686    Heat Deflectors

15           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

15           69284    Warming Rack Bracket

16           66514    Burner Tube Clamp (qty 2), Genesis II

16           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

17            66529    LHS fixed table, Genesis LX, ’17, EU W

17            74335    Pressure plates, Genesis II LX series (qty 2)

17            74471     Literature Kit, Genesis II 240/340/440/640, export

18           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

18           66822    Hardware, manifold, Genesis II LX

18           66824    Hardware for cookbox, Genesis II/II LX

18           67412     Cookbox, Genesis II 410/415, ’19

19           66357    Clip for ignition wire routing, round set (qty 2)

20           66489    Manifold assembly, LP, 29 mb, Genesis II LX 400 series, export

20           66822    Hardware, manifold, Genesis II LX

21           66414    Igniter harness, Genesis II LX 440

22           66028    Bottom tray rails, Genesis II E/SE series

22           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

23           66037    Grease Tray

24           66766    LHS panel, Genesis II LX series

24           66819    Hardware, frame/panels, Genesis II LX

25           66230    Top trim for control panel, SS, Genesis II/LX 400 series

25           66823    Hardware, mid panel/scale/hanger

26           66461    Control panel assembly, Genesis II LX 440

26           66819    Hardware, frame/panels, Genesis II LX

27           66410    LED harness wire/clip assembly, Genesis II LX 440

28           66725    Rain boot for knobs, Genesis II LX (qty 2)

28           66754    Control knob kit, Genesis II LX (qty 2)

29           69282    Momentary Light Switch

30           6498      Drip Pan

31           70379     Catch Pan Kit

32           66422    Catch pan holder panel, Genesis II LX 440

32           66823    Hardware, mid panel/scale/hanger

32           83320    Door magnet

33           66085    Bottom panel, Genesis II LX 400 series, export ’17

33           66914    Hardware for rear/bottom panel, Genesis II LX

34           66445    Front frame, Genesis II LX 400 series, export

34           66819    Hardware, frame/panels, Genesis II LX

35           66830    Wire clips (qty 3)

36           67067     Locking Casters

36           67070     Insert kit for casters, Genesis II LX

37           66429    Hardware, door

37           66468    LHS door assembly, Genesis II LX E-440

38           66429    Hardware, door

38           66469    RHS door assembly, Genesis II LX E-440

39           66429    Hardware, door

39           69285    Door handle w/bezels (qty 1)

40           66438    Lid hardware, Genesis/Searwood/Weber Smoque

41           64830    GBS Insert

42           66093    Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export

43           66061    Lid Bumpers

43           66401    Side burner lid, Genesis II LX series

44           67307     Grate for side burner, Genesis II ’19

45           66400    Side burner cap

46           91173     Side burner ring

47           66397    Side burner tray, Genesis II LX series

48           66347    iGrill Plugs, Genesis II E/SE series (qty 2)

48           66384    Side burner assembly, 29 mb, Genesis II LX, export

48           66511     Side burner table, Genesis II LX series

48           66830    Wire clips (qty 3)

48           74335    Pressure plates, Genesis II LX series (qty 2)

48           74471     Literature Kit, Genesis II 240/340/440/640, export

49           66259    Igniter module, Gen II 2B or Gen II/LX/Summit S/B

49           66394    Igniter kit for side burner, Genesis II LX, ’17

49           66806    Hardware, ignition module

50           66395    Igniter electrode w/wires, side burner, Genesis II LX series

51           66387    Side burner valve assembly, 29 mb, Genesis II LX, export

51           73229    Brass hex nut

52           66398    Side Burner Control Knob

53           66396    Heat/water deflector, side burner, Genesis II LX series

54           66344    iGrill cover

55           66457    Top trim for rear frame, SS, Genesis II/LX 440

55           66819    Hardware, frame/panels, Genesis II LX

56           66449    Rear frame, Genesis II LX 400 series, export

56           66819    Hardware, frame/panels, Genesis II LX

57           66764    Rear panel, Genesis II LX 440

57           66914    Hardware for rear/bottom panel, Genesis II LX

58           66819    Hardware, frame/panels, Genesis II LX

58           66830    Wire clips (qty 3)

58           66985    RHS panel assembly, LP

59           66257    Tank hanger w/strap, Genesis II LX series, export

59           66258    Tank hanger strap w/clasp, export

59           66823    Hardware, mid panel/scale/hanger

60           66217     Rear tank enclosure panel, Genesis II, export

60           66679    Hardware, tank panel buttons

61           66679    Hardware, tank panel buttons

61           67419     Front tank panel, Genesis II series

62           67202    Battery pack head, Genesis II LX, ’18

62           70880    Battery pack housing

63           66358    Igniter module cover, Genesis II 210/310/410

64           66260    Igniter module, Genesis II 310/410/340/440

64           66505    Igniter Kit

64           66806    Hardware, ignition module

64           66830    Wire clips (qty 3)

64           67161     Conduit tube for igniter wires, black

64           67693    Igniter wire conduit clamp, 3 pack

65           66496    Corrugated gas line, Genesis II LX 440/640

66           66519    Side burner gas line w/QD fitting, Genesis II LX series

67           66521    Bulkhead assembly, Genesis II LX 400/600 series, export

67           66823    Hardware, mid panel/scale/hanger

68           91478     LP hose and regulator 30MB, 90CM, NL

69           67654    Wheel insert kit, Genesis II, ’19

70           67445    Wheel

71            66251    Axle w/hardware, Genesis II E/SE series

71            66682    Hardware for wheels

72           66534    Match holder assembly, Genesis LX, 440/640
