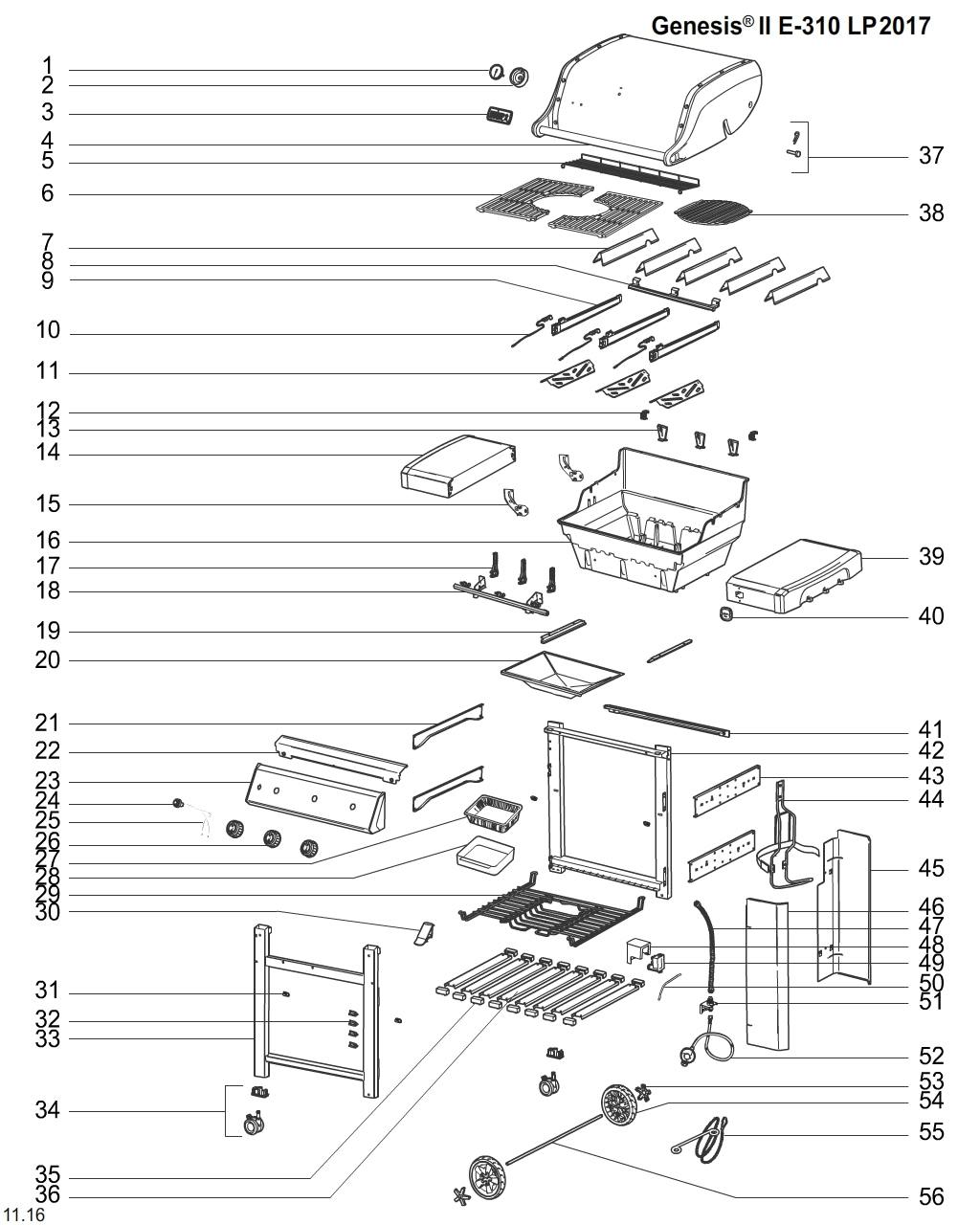

1             67089    Thermometer, C/F, Genesis II, export

2             66049    Lid Thermometer Bezel

3             66282    Weber logo

4             66053    Lid assembly, Genesis II E-310, black

4             66061    Lid Bumpers

5             66044    Warming Rack

6             66091    Cooking Grates

7             66795    Flavorizer Bars

8             66167     Crossover tube, Genesis II 300 series, export ’17

9             66773     Burner tube kit, 29 mb, Genesis II 300 series (qty 3)

9             66774     Burner tube kit, 29 mb, Genesis II 300 series (qty 2)

10           66362    Igniter electrode w/wire, 36″, black

10           66363    Igniter electrode w/wire, 46″, green

10           66833    Igniter electrode w/wire, 27″, yellow

11            66685    Heat Deflectors

12           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

12           69284    Warming Rack Bracket

13           66514    Burner Tube Clamp (qty 2), Genesis II

13           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

14           67072     LHS table, Genesis II, export

15           67071     Brackets for pivot table, Genesis II 210/310

15           72970     Hardware for pivot table, Genesis II 210/310

16           66678    Hardware, manifold

16           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

16           66824    Hardware for cookbox, Genesis II/II LX

16           67410     Cookbox, Genesis II 310/315 ’19

17            66357    Clip for ignition wire routing, round set (qty 2)

17            66360    Clip for ignition wire routing, square set (qty 2)

18           66678    Hardware, manifold

18           66298    Manifold assembly, LP, 29 mb, Genesis II 300 series, export

19           66683    Hardware for cookbox rails/brackets, Genesis II/LX series

19           66028    Bottom tray rails, Genesis II E/SE series

20           66036    Grease tray, Genesis II E-310/340

21           66680    Hardware, frame/tank hanger, Genesis II/LX

21           66219    LHS frame connector, Genesis II E/SE series

22           66680    Hardware, frame/tank hanger, Genesis II/LX

22           66229    Top trim for control panel, SS, Genesis II/LX 300 series

23           66680    Hardware, frame/tank hanger, Genesis II/LX

23           66254    Control panel assembly, Genesis II E-310

24           69283    Ignition Button

25           66376    Igniter wire assembly, Genesis II E-310

26           66047    Knobs

26           66048    Knobs

27           6415       Drip Pans

28           83156    Catch Pan Kit

29           66171     Wire rack, Genesis II E-310

30           66174     Catch pan retainer/lock, Genesis II E/SE series

31           66175     Wire rack bushing set, Genesis II E/SE series (qty 4)

32           66368    Igniter wire clip set

33           66680    Hardware, frame/tank hanger, Genesis II/LX

33           67234    Front frame, Genesis II 3 burner, ’18

34           67066    Caster insert kit

34           67067     Locking Casters

35           66066    Bottom slat mounting bracket set, Genesis II E/SE series (qty 2)

36           66067    Bottom slat, single w/label, Genesis II LP, export

36           66068    Bottom slat set, Genesis II E/SE series (qty 2)

37           66060    Lid hardware, Genesis II E/SE series

38           64830    GBS Insert

39           72968    Hardware bag D, Genesis II RHS fixed table

39           72974     Crescent wrench

39           66343    RHS fixed table, Genesis II E/SE series

39           66347    iGrill Plugs, Genesis II E/SE series (qty 2)

40           66344    iGrill cover

41           66680    Hardware, frame/tank hanger, Genesis II/LX

41           66222    Rear frame top trim, Genesis II E-310

42           66680    Hardware, frame/tank hanger, Genesis II/LX

42           67238    Rear frame, Genesis II 3 burner, ’18

43           66680    Hardware, frame/tank hanger, Genesis II/LX

43           66218    RHS frame connector, Genesis II E/SE series

44           66680    Hardware, frame/tank hanger, Genesis II/LX

44           66257    Tank hanger w/strap, Genesis II LX series, export

44           66258    Tank hanger strap w/clasp, export

45           66679    Hardware, tank panel buttons

45           66217     Rear tank enclosure panel, Genesis II, export

46           66679    Hardware, tank panel buttons

46           66225    Front tank panel, Genesis II E/SE series

47           66164    Corrugated gas line, Genesis II E-210/310

48           66358    Igniter module cover, Genesis II 210/310/410

49           66354    Igniter Kit

49           67161     Conduit tube for igniter wires, black

49           67693    Igniter wire conduit clamp, 3 pack

49           66260    Igniter module, Genesis II 310/410/340/440

50           66834    Ground wire, blue, 28.25″, Genesis II LX

51           66680    Hardware, frame/tank hanger, Genesis II/LX

51           66206    Bulkhead assembly, Genesis II LX 200/300 series, export

52           91478     LP hose and regulator 30MB, 90CM, NL

53           67654    Wheel insert kit, Genesis II, ’19

54           67445    Wheel

55           66345    Match stick holder

56           66682    Hardware for wheels

56           66251    Axle w/hardware, Genesis II E/SE series

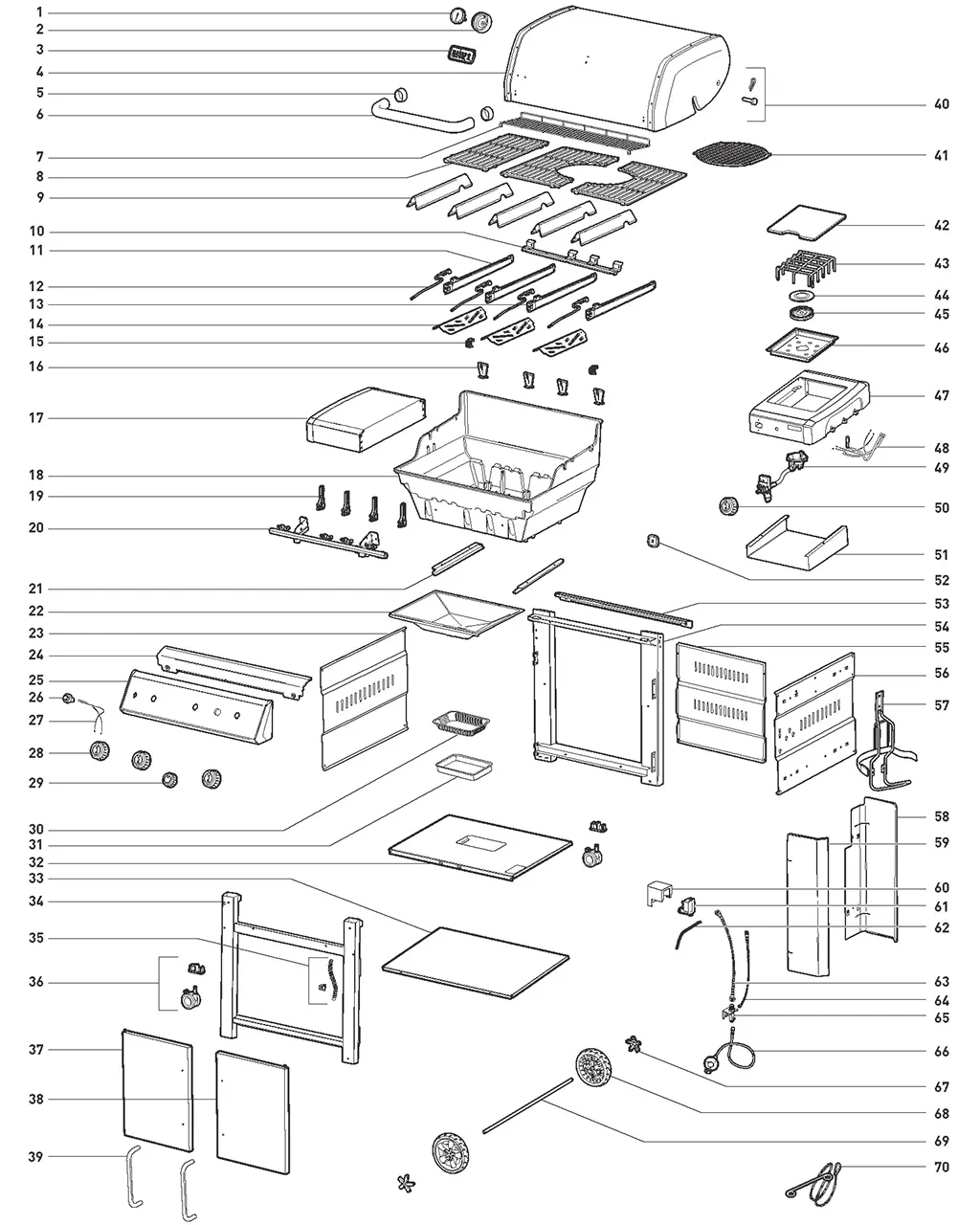

1             67089    Thermometer, C/F, Genesis II, export

2             66049    Lid Thermometer Bezel

3             66282    Weber logo

4             66061    Lid Bumpers

4             66438    Lid hardware, Genesis/Searwood/Weber Smoque

4             67367     Lid assembly, Genesis II 3 burner, ’19, black

5             66831    Handle bezel, Genesis II LX, ’17

6             66417     Lid handle, Genesis II LX 340

7             67484    Warming rack, Genesis II 3 burner, export

8             67448    Cooking grates, GBS, Genesis II 3 burner ’19, porcelain enamel cast iron

9             66795    Flavorizer Bars

10           67456    Crossover tube for sear, Genesis II 3 burner ’19

11            67501     Burner tube kit, 29mb, Genesis II 3 burner ’19

12           66362    Igniter electrode w/wire, 36″, black

12           66363    Igniter electrode w/wire, 46″, green

12           66365    Igniter electrode w/wire, 32″, red

12           66833    Igniter electrode w/wire, 27″, yellow

13           67496    Burner tube kit, 29 mb, Genesis II 335/435

14           66685    Heat Deflectors

15           69284    Warming Rack Bracket

16           66514    Burner Tube Clamp (qty 2), Genesis II

17            67378     LHS fixed table, export

17            68582    Hardware for fixed table, Genesis II ’19

18           66822    Hardware, manifold, Genesis II LX

18           66824    Hardware for cookbox, Genesis II/II LX

18           67411     Cookbox, Genesis II 330/335 ’19

19           66357    Clip for ignition wire routing, round set (qty 2)

20           67476     MFLD ASSY 29 MB 330/335 GEN, export

21           66028    Bottom tray rails, Genesis II E/SE series

22           66036    Grease tray, Genesis II E-310/340

23           66766    LHS panel, Genesis II LX series

24           66229    Top trim for control panel, SS, Genesis II/LX 300 series

25           67414     Control panel assembly, Genesis II 3 burner ’19

26           69283    Ignition Button

27           66376    Igniter wire assembly, Genesis II E-310

28           66047    Knobs

29           67444    Sear Knob

30           6415       Drip Pans

31           93305    Catch Pan Kit

32           66421    Catch pan holder panel, Genesis II LX 340

32           83320    Door magnet

33           66082    Bottom panel, Genesis II LX 300 series, export

34           67538    Front frame, Genesis II E-315 ’19, platinum

35           67161     Conduit tube for igniter wires, black

35           67693    Igniter wire conduit clamp, 3 pack

36           67066    Caster insert kit

36           67067     Locking Casters

37           67429    LHS door, Genesis II 3 burner ’19, black

38           67430    RHS door, black

39           69285    Door handle w/bezels (qty 1)

40           66438    Lid hardware, Genesis/Searwood/Weber Smoque

41           64830    GBS Insert

42           66401    Side burner lid, Genesis II LX series

43           67307     Grate for side burner, Genesis II ’19

44           66400    Side burner cap

45           91173     Side burner ring

46           66397    Side burner tray, Genesis II LX series

47           67385    RHS side burner table, Genesis II, ’19

47           68582    Hardware for fixed table, Genesis II ’19

48           67534    Ignition wires for side burner, Genesis II 330/335

49           67529    Valve/cup assembly, side burner, 29 mb, Genesis II, export

49           69335    Side burner assembly, 29 mb, Genesis II 330/335/435 LP, export

50           66398    Side Burner Control Knob

51           66396    Heat/water deflector, side burner, Genesis II LX series

51           67661     Wire clip w/adhesive for side burner/green wires

52           67334    iGrill cover w/snap

53           66456    Rear frame top trim, Genesis II LX 340

54           67402    Rear frame, Genesis II E-315 ’19, platinum

55           66763    Rear panel, Genesis II LX 340

56           67446    RHS LP panel

57           66257    Tank hanger w/strap, Genesis II LX series, export

57           66258    Tank hanger strap w/clasp, export

58           66217     Rear tank enclosure panel, Genesis II, export

58           66679    Hardware, tank panel buttons

59           66679    Hardware, tank panel buttons

59           67419     Front tank panel, Genesis II series

60           66359    Igniter module cover, Genesis II/LX 600 series

61           66261    Igniter module, Genesis II/LX 600 series

61           67532    Igniter Kit

62           67536    Ground wire for sideburner, Genesis II 330/335

63           67455    Main corrugated gas line, Genesis II, ’19

64           66519    Side burner gas line w/QD fitting, Genesis II LX series

65           66523    Bulkhead assembly, Genesis II LX 200/300 series, export

66           91478     LP hose and regulator 30MB, 90CM, NL

67           67654    Wheel insert kit, Genesis II, ’19

68           67445    Wheel

69           66251    Axle w/hardware, Genesis II E/SE series

70           66533    Match holder assembly, Genesis II LX 240/340
